Looking for reliable truck frame mounting brackets to secure tool boxes and underbody compartments? This guide highlights five solid options, detailing who they’re best for, key features, and practical tips. Each product is evaluated for durability, fit, and ease of installation, helping fleet managers, shop technicians, and DIY truck owners choose confidently.
| Product | Best For | Key Benefit |
|---|---|---|
| Colinktool Underbody Steel Mounting Brackets | Heavy-duty installations | Sturdy, rust-resistant steel with multiple mounting holes |
| Underbody Truck Tool Box Mounting Brackets Kit (Vigorighter) | Space-saving underbody boxes | Optimized dimensions with pre-drilled holes |
| Buyers Products 18″x18″ Formed Welded Brackets | Universal compatibility | Welded, corrosion-resistant with universal hole pattern |
| LLNSEAUTO Aluminum Alloy J Hooks Kit | Versatile bed mounting | Lightweight mounting kit with clamps and screws |
| heneng 2Pcs Weld-On Body Mount Brackets | Off-road and chassis work | Sturdy weld-on options for frame mounting |
The table above summarizes the top five options. Each product below is reviewed for suitability, installation notes, and who should buy it. Prices are not included to keep the focus on fit and function.

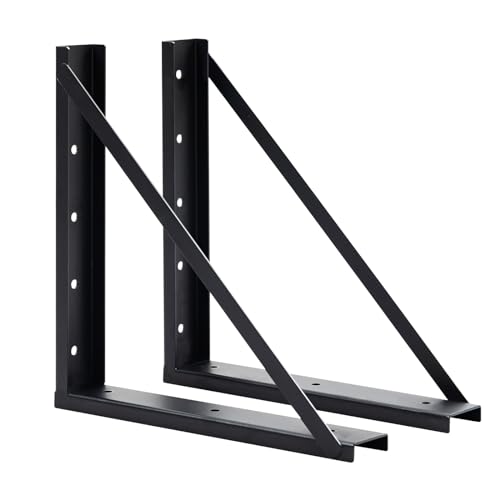

Colinktool Underbody Steel Mounting Brackets
Product type: Underbody mounting brackets designed for a 24″ x 24″ box. Best for professionals mounting larger underbody tool boxes that require robust support. Material is heavy-duty folded steel with a black powder coat to resist rust and wear. Includes two brackets per set and comes with screws, spacers, and sleeves. Hole patterns support multiple mounting configurations.
Who this is for: Fleet maintenance teams and DIY installers who need a durable, stable mounting solution for a 24″ deep toolbox mounted under the body of a pickup or flatbed. It’s ideal when you want a long-lasting hold with a simple bolt-in approach after drilling mounting holes in the underbody box.
Why chosen: The combination of heavy-duty construction and a broad mounting hole set makes alignment easier and reduces flex under heavy loads. It’s especially suitable when you repeatedly load and unload equipment in rough conditions.
Caution: Requires drilling into the underbody box to complete installation, so accuracy is important to avoid misalignment or leaks. Ensure the frame surface is clean and flat before mounting.
Underbody Truck Tool Box Brackets Kit (Vigorighter)
Product type: Welded formed steel mounting brackets designed for 18″ x 18″ underbody tool boxes. Comes as a two-bracket set with compatible screws, spacers, and bolts. Durable steel construction supports heavy loads and resists vibrations while in transit.
Who this is for: Users seeking a compact, sturdy mounting solution for standard underbody boxes that maximize cargo space inside the truck bed or frame area. Great for vehicles subject to rough road conditions where stability matters most.
Why chosen: The 17.7″ length and 18.5″ height with 10 mm pre-drilled holes ensure compatibility with many standard underbody boxes, simplifying alignment and fast installation.
Caution: Not indicated for plastic or lighter-duty boxes; verify your box material and dimensions to ensure a correct fit before purchasing.
Buyers Products 18″x18″ Formed Welded Brackets
Product type: Formed welded steel mounting brackets for underbody tool boxes. Includes two brackets with universal hole patterns to fit various frames. Welded construction provides rigid support and long-term durability, designed to resist flex and vibration under heavy loads.
Who this is for: Anyone retrofitting or upgrading an underbody toolbox, especially on steel, stainless, or aluminum boxes (not recommended for poly boxes). It’s suitable for DIY installations and professional service work where a fixed, robust mount is needed.
Why chosen: The universal hole pattern offers flexibility across different box dimensions and frame geometries, reducing the need for custom fabrication. Welded brackets provide a solid, vibration-resistant anchor point.
Caution: Confirm your toolbox depth and frame height to avoid undersizing or overhang that could interfere with drivetrain components or tire clearance.
LLNSEAUTO Aluminum Alloy J Hooks Mounting Kit
Product type: Aluminum alloy J-hook mounting kit designed for universal use in truck beds. Includes four J-hooks, four M8 bolts, washers, and aluminum clamps. The clamps provide a larger clamping area for a secure hold on various toolbox configurations.
Who this is for: Buyers looking for a lighter-weight, versatile mounting approach for a wider range of toolbox sizes and truck bed setups. Ideal for temporary or semi-permanent installations where weight matters.
Why chosen: The aluminum components reduce overall weight while maintaining adequate strength for typical cargo boxes. The kit’s clamp-based design also facilitates easier removal and reinstallation.
Caution: Aluminum clamps may be less forgiving under extreme heavy loads or high-vibration routes; verify load expectations and avoid over-tightening to prevent clamp deformation.
heneng 2Pcs Weld-On Body Mount Brackets
Product type: Straight-down weld-on body mount brackets designed for frame mounting on trucks and off-road chassis. Sold in pairs, made from durable material with pre-punched holes to facilitate installation.
Who this is for: Off-road enthusiasts and chassis workers who prefer weld-on solutions for a fixed, durable mounting point. Suitable for heavy-duty frame projects and semi-truck adjustments where welding is part of the install plan.
Why chosen: Weld-on brackets offer a permanent mounting solution with strong load-bearing capability, making them ideal for permanent installations that require minimal movement over time.
Caution: Welding requires appropriate skills and preparation. Ensure compatibility with your vehicle’s frame and consult professional help if needed to avoid structural damage or misalignment.
Buying Guide: Key Considerations For Truck Frame Mounting Brackets
What should you measure before buying? Start by measuring toolbox dimensions (height, width, depth) and the frame clearance around the mounting area. Check for available hole patterns and confirm they align with your box and frame. Consider material: steel offers durability; aluminum reduces weight; welded brackets provide rigid support, while clamp-based systems offer easier swaps.
Which mounting style is best? Welded brackets deliver permanent, high-strength mounts ideal for heavy use and rough roads. Bolt-on and clamp systems are better for temporary setups or where you might need to remove the box for maintenance or reconfiguration.
How important is corrosion resistance? If you operate in humid or salty environments, powder-coated steel or stainless steel components improve longevity. For aluminum options, corrosion resistance is inherently strong, but ensure clamps and bolts match the metal to avoid galvanic corrosion.
What about installation complexity? Weld-on brackets require welding skills or professional service. Bolt-on and drilled-hole brackets can be installed by a competent DIYer with basic tools. Always follow the manufacturer’s drilling patterns and torque specifications.
Compatibility tips: Verify that the box material (steel, stainless, aluminum, poly) matches the bracket’s intended use. Some brackets are designed specifically for underbody boxes; others are universal. Always confirm left-right or matched pair requirements for proper support.
Frequently Asked Questions
- What is the most durable truck frame mounting bracket? Answer: Welded, formed steel brackets typically offer the highest rigidity and long-term durability for underbody boxes in demanding conditions.
- Do I need to drill holes for all mounting brackets? Answer: Many brackets require drilling into the underbody box or the frame to secure the mounting points, while clamp-based systems may require less modification.
- Can I use these brackets on any truck? Answer: Most brackets target common toolbox dimensions and standard frame profiles, but always verify box size, frame width, bolt hole patterns, and clearance before purchasing.
- Are aluminum brackets lighter than steel ones? Answer: Yes, aluminum options are typically lighter, which can reduce overall vehicle weight, but confirm maximum load capacity for your setup.
- Is corrosion resistance important for underbody mounts? Answer: Yes, especially in exposure-heavy environments; choose powder-coated steel or stainless options for longer life.
- When should I hire a professional? Answer: If welding is required or if you’re unsure about frame integrity, consult a professional installer to ensure safe, compliant mounting.
