Answering buyers seeking compact, reliable automotive micro relays, this guide highlights five suitable options. These relays suit different vehicles and electrical needs, from signal circuits to power feeds. They’re best for DIY auto enthusiasts, professional installers working on compact fuse/relay boxes, and anyone replacing worn relays in tight engine bays. Below you’ll find a quick comparison table, then detailed sections for each pick, followed by a practical Buying Guide and a concise FAQ.
| Product | Type | Coil | Current | Form |
|---|---|---|---|---|
| Nilight SPST Multi Purpose Relay | 5Pin SPST | 12V | 35A / 20A | 5 Pin |
| ESUPPORT Car Heavy Duty Relay Switch | SPST | 12V | 30A | 5 Pin |
| BOSCH 0986332022 Changeover Mini Relay | 5 Pins | 12V | 40/60A | 5 Pin |
| CH SHUODI 5 Pin Micro Relay | 5 Pin | 12V | 30A | 5 Pin |
| (Pack of 2) 301-1C-C-R1 U01 12VDC | 5 Pins SPDT | 12V | 35A | 5 Pin |
Nilight SPST Multi Purpose Relay 12V 5 Prong
Best for: general automotive power applications in midsize cars, trucks, and marine engines. This 5-pin SPST relay handles 35A for resistive loads and 20A on NC contacts, making it versatile for headlights, fuel pumps, and other high-demand circuits when space is limited. The 12V coil is standard in most vehicles and designed for reliable operation in temperatures up to 125°C. It’s suitable for replacing worn, damaged, or corroded relays in common fuse/relay boxes. Caution: ensure pin orientation matches your vehicle’s original relay to avoid incorrect wiring.
ESUPPORT Car Heavy Duty Relay Switch 12V 30A
Best for: budget-conscious installers wanting a durable SPST relay in a multi-pack for frequent replacements. This heavy-duty 12V relay delivers 30A with a robust 5-pin design and a molded socket, making it well-suited for power circuits such as fans, pumps, or lighting in passenger vehicles and light trucks. Selection note: consider packs when planning multiple circuits; confirm that the socket type is compatible with your wiring harness.
BOSCH Changeover Mini Relay 12V 40/60A
Best for: applications requiring a higher switching current in tight spaces. The Bosch 0986332022 is a compact 5-pin form C relay with 40A/60A switching capability, designed for reliability over many cycles and long-term use. It’s a suitable upgrade where a standard 30A relay may trip under load. Caution: the higher amperage rating requires careful routing of wires to prevent heat buildup in cramped engine bays.
CH SHUODI 5 Pin 12V 30A Micro Relay 4 Pack
Best for: cost-effective spares for small- to mid-size cars where multiple relays are needed, such as fan control, light bars, or auxiliary power. The pack includes four 5-pin relays with 12V operation and nylon housing, offering reliable operation across weather conditions. Choose this if you want ready-to-use replacements; caution: verify circuit current requirements to avoid overloading relays in high-draw circuits.
(Pack of 2) 301-1C-C-R1 U01 12VDC 35A
Best for: users upgrading to 12VDC 35A SPDT relays for applications including cruise control, starting circuits, and fuel-related controls where a Form C contact arrangement is beneficial. The 301-1C-C-R1 U01 model supports 35A, making it suitable for demanding automotive tasks. Limitation: ensure your vehicle’s wiring harness and mounting space accommodate a 5-pin SPDT layout to avoid misfit.

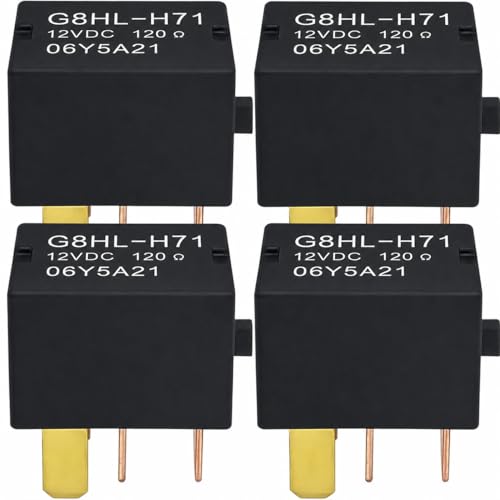

4PCS G8HL-H71 12V Micro ISO Relays
Best for: Honda and related platforms where compact ISO-controlled relays are required for engine bay or interior fuse/relay boxes. These 4-pin 20A relays are designed to replace several Honda-era parts and offer a compact footprint for tight installations. Caution: verify compatibility with the specific vehicle model year; some applications require precise part numbers beyond general compatibility claims.
Buying Guide: Key Considerations For Automotive Micro Relays
- Current rating vs. load: Match relay current rating to the circuit’s expected draw. Overloading can cause overheating or failure.
- Coil voltage compatibility: Most vehicles use 12V coils; confirm coil voltage aligns with your vehicle’s electrical system.
- Contact form and count: Form A (normally open) vs. Form C (SPDT) impacts how you wire circuits. Choose based on whether you need switching or routing options.
- Physical size and mounting: In cramped engine bays, a low-profile or compact ISO relay helps fit where space is tight.
- Pinout orientation: Verify that pin layout matches your existing harness or socket to avoid miswiring.
- Durability features: Look for high-temperature tolerance, robust housing, and vibration resistance for automotive environments.
- Pack quantity: If replacing multiple circuits, consider multi-packs to reduce sourcing frequency and costs.
Practical buyer questions
- What is the difference between SPST, SPDT, and Form C relays? SPST switches one circuit on/off; SPDT can switch between two outputs; Form C (3 terminals) is a common type offering switching flexibility.
- Can I use high-current relays in low-load circuits? It’s generally acceptable but not efficient; choose relays with a current rating appropriate for the circuit to avoid unnecessary heat.
- Should I choose a 5-pin or 4-pin version? Most automotive relays use 5 pins; always verify pin layout and socket compatibility before installation.
- Do relays require any special installation tools? Basic hand tools suffice; ensure the wiring harness is correct and secure with proper insulation.
- Are these relays suitable for outdoor exposure? Many automotive relays are designed for engine bay conditions but confirm IP ratings or weather resistance for exposed installations.
- Is a higher amperage relay better? Not necessarily; it provides a margin for higher loads but may require more space and wiring considerations.
Quick reference table: Buying considerations
- Best for general replacements: Nilight 12V 35A SPST
- Best for high-load circuits: Bosch 40/60A mini relay
- Best for multi-pack replacements: ESUPPORT 30A SPST
- Best for cost-effective spares: CH SHUODI 30A (4 Pack)
- Best for compatibility with Honda-era models: Kwaich 4-pack ISO relays
